The Mineral Wells 23 cm E.M.E. project ...

updated 2005 May 8





This Prodelin dish owned by K5UGM was advertised for sale in the NTMS Feedpoint.  It really triggered

my plans to get on 1296 eme.  K5JL told me it was THE band to get on!  The Prodelin seemed too heavy

and I found out that K5GW was interested in selling his old 4 meter dish, feed, and elevation system.

This beautiful K5GW handcrafted dish above is the replacement for his original dish below.  The array

on the left is his 70 cm array, another handcrafted wonder!

This is the dish buried in the grass at K5GW.  We are gonna go pick it up on March 16, 2005.

disassembly starts. Mike, KK5SC getting dirty.  K5GW's shack in back





two halves and the hub

the original equatorial hub modified by K5GW for the el/az mount

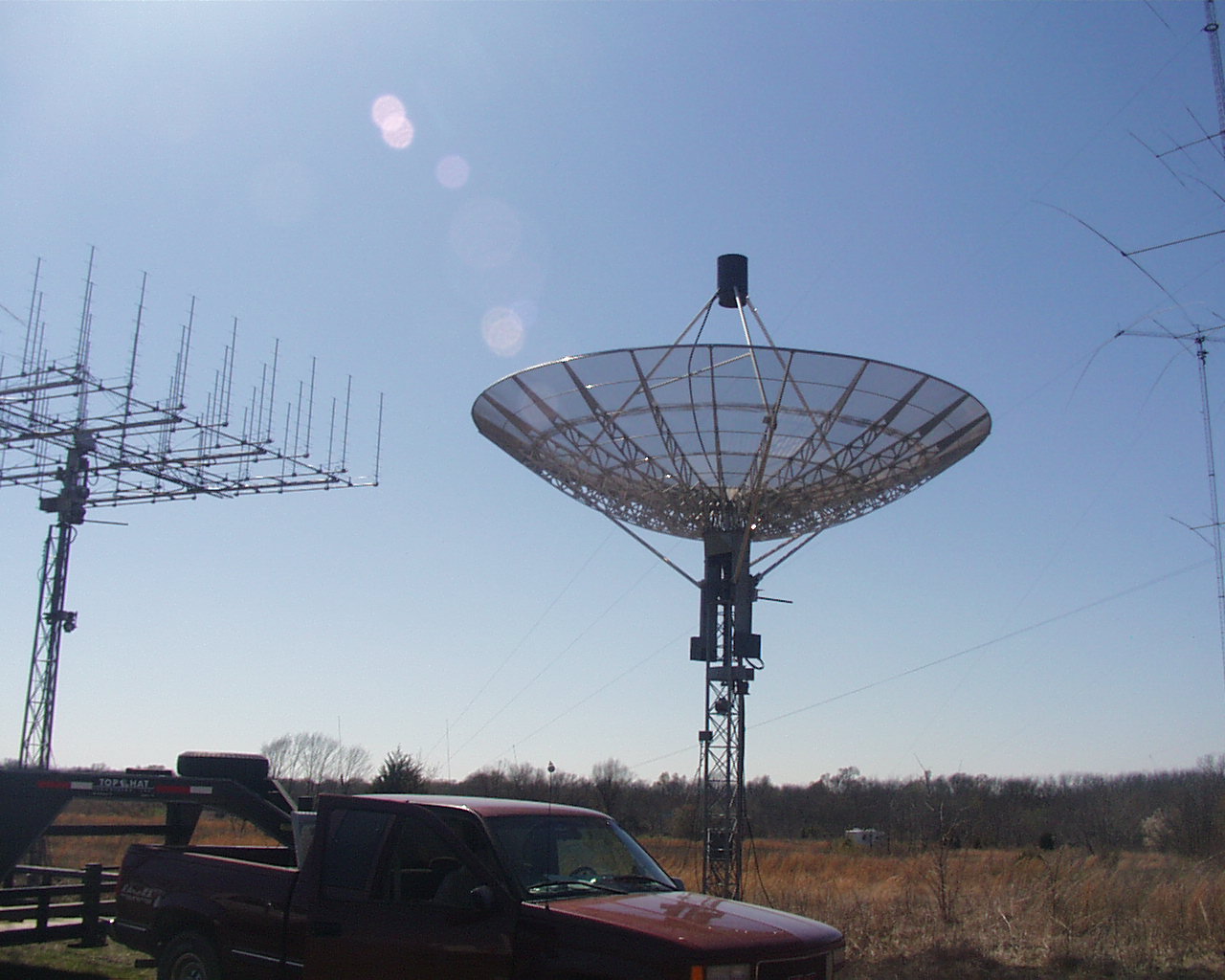

load on KK5SC's trailer and ready for the 130 mile trip back to Mineral Wells.

The elevation rotor is to the left of the hub.

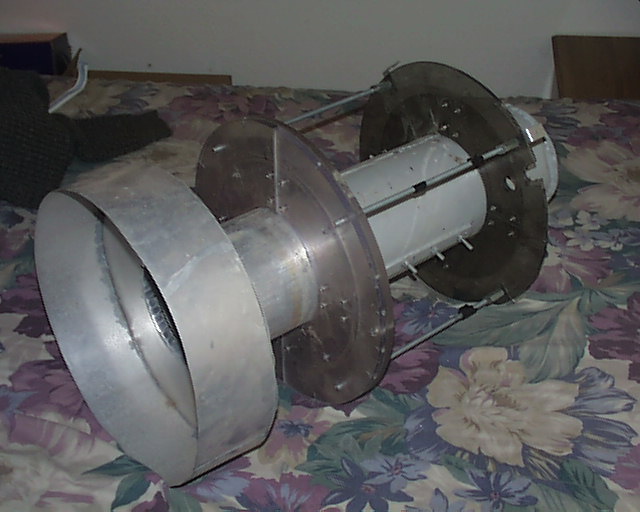

The VE4MA feed, built by one of the Dallas gurus, W5AFY I think,

and procured from K5GW along with the dish.



Looking into the business end.

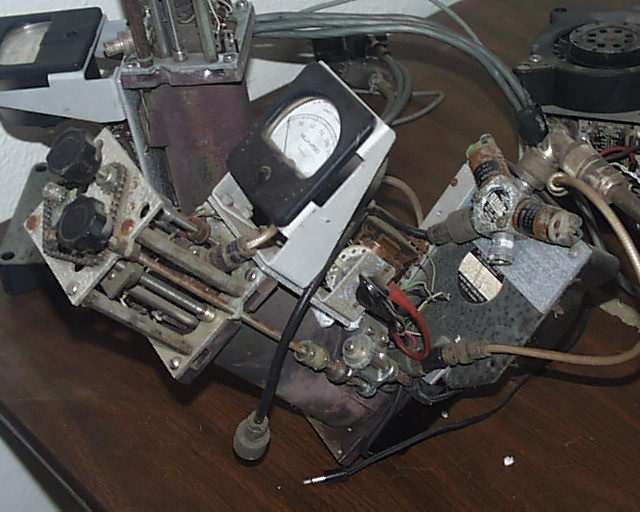

One of the two 7289 driver stages.  I got these from K5UGM who got them from W5GG.

W5GG used to make a pretty loud 1296 signal into south Texas along with W5HN.

A leftover from earlier projects may become the driver.  It's only problem

 is that it does not have a computer interface!

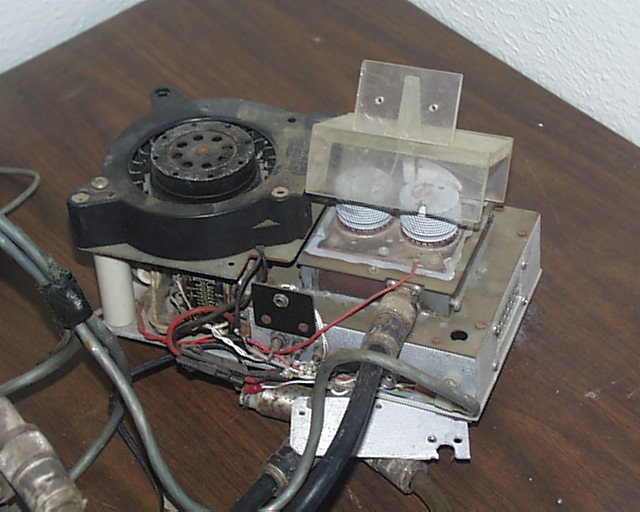

This is the final amp.  Supposedly it will put out 200-300 air-cooled watts.  The air duct

is bent back out of it's normal position.
